ONCE UPON A TIME SUPRAVOX



Before the Second World War, a company called S.E.M. (Super Electro-Mechanic) situated 26, rue Pierre Lagny in Vincennes near Paris started producing a 4.7 inches electro-magnet speaker to be used in radio receptors. This company, held by Mr DORLIAC, ex mechanic engineer onboard warships, was then specialised in high precision metal parts.

In the meantime in the early 30's, Mr LEGORJU created "AUDAX" and started producing speakers in Montreuil.

Little time after war, Mr LIEBERT, production and R&D manager for "S.E.M.", conceived and realised the very first exponential cones. He then launched the first 6.5"; 8.5"; 10"; 11"; and 13" wide range driver. According to our sources, an American company called "UNIVERSITY" made the only drivers capable of comparison.

The first "S.E.M." drivers using Alnico or Ticonal permanent magnets have been produced in the late 40's.

Mrs DORLIAC, whom was Italian, was in touch with the owners of the company "RADIOPHONO E ELECTROPHONO". In 1956, she registers the brand "SUPRAVOX" and installs her factory in Paris 46, rue de Vitruve in the ex buildings of Henry de FRANCE, inventor of the SECAM precede. Then starts the production of speakers under the brand "SUPRAVOX". Using the knowledge of "S.E.M." especially in exponential cones and high sensibility wide range transducers.

At the same time, the company "SIARE" is created by an ex employee of "SUPRAVOX".

In the world, Germans prefer to use radial cones although Americans, especially with "ALTEC" work with exponential cones.

Between 1956 and 1960 the French trust of T.V. and radio manufacturers called "CGTVE" and regrouping "T.V.A.", "AMPLIX", "TELEMASTER", "AIRPHONE" etc…ordered most of their speakers to "SUPRAVOX", especially the drivers equipped with a ticonal magnet and a magnetic proof engine cap.

In the same time, "SUPRAVOX" with 40 cabinets equipped with the 11" drivers participates to the acoustic insulation of the English/French supersonic plane CONCORDE.

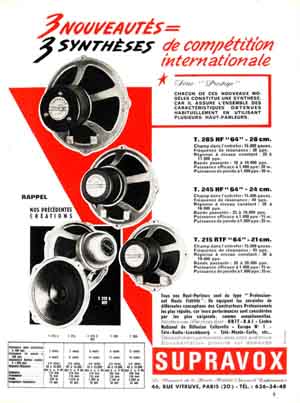

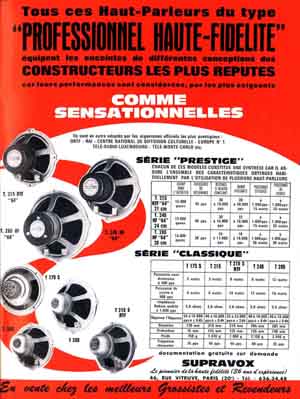

 In 1964, the R.T.F. (French Radio & Television) was looking for wide range speakers to equip its studios. For this market, a 215 mm speaker was created under the name of 215 RTF 64. This wide range speaker and its revolutionary cone equipped the studios of O.R.T.F.(France), R.A.I.(Italy), R.T.L.(Luxemburg), Europe 1, and is still built for the satisfaction.




215 RTF 64 excitation

(electro magnet)


215 RTF 64 bicone
 By this period of time, Mr LEON from "ELIPSON" created the famous "CONQUES" with or without hear using a 215 RTF 64 with tweeter or a 215 RTF 64 double cone. These models invaded the market and are still considered as a reference.







In 1968, SUPRAVOX realises one of its first non audiophile speaker : a 104mm speaker designed to work from -50°c to 80°c and 92dB of efficiency. 150.000 of those speakers will be assembled to equip emergency transceivers on the banks of French motorways.

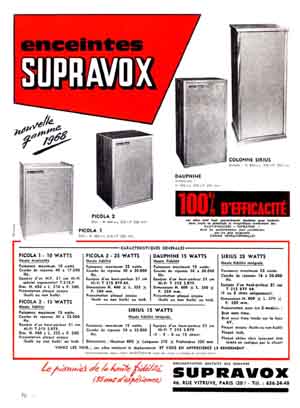

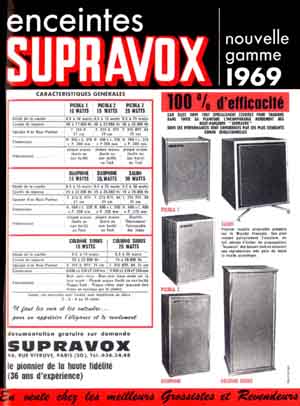

In 1979, Mr GHIO, an ex engineer from "THOMSON ELECTRONIQUE" takes the direction of SUPRAVOX after the accidental death of Mrs DORLIAC. With a friend of his that was carpenter, Mr GHIO, started building Hi-Fi cabinets for audiophiles : Salon, Piccola, RV cabinets…





In 1993, Mr GHIO, willing to retire, clauses the company without getting rid of his know-how.


215 RTF Bicone

In 1994 Guy LE CORNEC, ex sound ingineer, ex Supravox trainy and friend of Mr GHIO decide to bet on the new start of Supravox on the international scene.

He satisfies Mr GHIO waitings in giving birth to the 1995 evolution of the T215RTF64.

Then Mr. GHIO sells the brand in 1995 and on octobre the first 96 the SUPRAVOX company rebirth project is reality. Taking advantage of the know how of this 50 years old wide band speakers company and adapting it to modern technologies and materials (permanent magnets, papers glues...), Supravox speakers are back on the market. First goal is to create a complete range of products that will perpetuate the original philosophy : widest band and highest efficiency.


The production line of these legendary speakers starts, totaly hand made, in caves of Paris before settling in the loire valley at Saint pierre des corps from 96 to 99 then today in Bléré. Every speakers is still hand made and controled.


Today's range of wide band products is achieved as we propose speakers from 13 to 40cm (5" to 16" diameter).

- 135 LB et LB-B, Æ13 cm, large bande, 95 et 94dB/W à 1m.
- 165 LB, Æ17 cm, large bande, 95 dB/W à 1m.
- 215 RTF, Æ215 mm, 98 dB/W à 1m.
- 215 RTF bicone, Æ215 mm, 98 dB/W à 1m.
- 215 SIGNATURE (avec ou sans bicone), Æ215 mm, 96 dB/W à 1m.
- 215-2000, Æ215 mm ,moteur Alnico ou Excitation, 100 dB/W à 1m.


A second range is also available called bass medium range because these wide band speakers need the presence of an additionnal tweeter or horn above 4 to 7 kHz.

- 215 GMF Æ215 mm, 98 dB/W à 1m et 285 GMF, Æ285 mm, 99 dB/W à 1m.
- 400, grave, moteur Alnico ou Excitation, 96 à 99dB/W à 1m.

The new Supravox team proposes also two very high end horns that are excexptional quality regarding to their efficiency andresponse linearity

- Tweeter Pavilloné medium-aigu, 98dB/w, 2 à 20kHz+/-1.5dB.
- Pavillon medium-aigu pour moteur 1 pouce, 500 à 20kHz +/-1.5dB.
