Bartolucci MC Step-Up Transformers



Sorry, we cannot manage Bartolucci transformers more, please send your request at ricercaesviluppo@mobilia.it











mod

Step-Up

 ratio

for cartridges

 with dc resistance

primary

resistance

 secondary resistance

frequency

 range

square wawe

 without ripple

 gain

primary

 inductance

 used for

Euro / unit

Italia & CE

Tax included

Euro / unit

Extra CE

Without Tax

GIBA 68

 1/10 16 ohms 1 ohm 53 ohm 8Hz - 100kHz 10Hz - 90kHz - -

any low output MC

 of 0,6 mV

 see execution

see execution

GIBA 68A

 1/12,5 6 ohms 1 ohm 74 ohm 8Hz - 100kHz 10Hz - 90kHz - -

any low output MC

 of 0,4 mV

 see execution

see execution

GIBA 69

 1/14 9 ohms 0,7ohm 65 ohm 8Hz - 100kHz 10Hz - 90kHz - -

any low output MC

 of 0,6 mV

 see execution

see execution

GIBA 73

 1/25 3 ohms 0,36ohm 82 ohm 8Hz - 100kHz 10Hz - 50kHz - -

any low output MC

 of 0,2 mV

 see execution

see execution

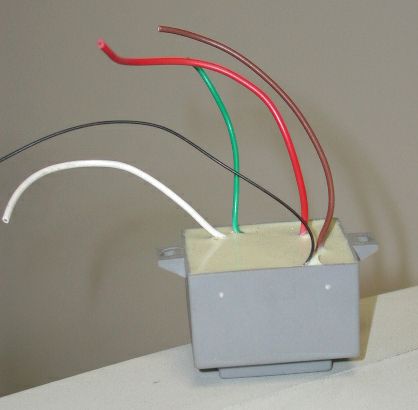

Execution A : MCPU Single Transformer Potted in Plastic Can 50x45x40 H  140gr weight Unshielded

Italia & CE  unit (mono) Euro 150,00          Extra CE Unit (mono) Euro 125,00



Execution B : MCMS Single Transformer Potted in Triple Mumetal Can 60x50x60 H  380 gr weight

Italia & CE  Unit (mono)  Euro 250,00          Extra CE Unit (mono) Euro 208,00



Execution C : MC2M Double MCMS Transformer Mounted in Metal Balck Enclosure with Input / Output RCA and Ground terminal,  Size 150x150x84 H 1,6 Kg weight  750 COMPLETE SET

Italia & CE  Complete stereo set Euro 750,00          Extra CE Complete stereo set Euro  625,00



Execution D : MC2W Double  MCMS Transformer Mounted in SOlid Walnut Wood Enclosure with Input / Output RCA, Ground & Switch Terminal, Size 178x120x120 H   780,00 COMPLETE SET

Italia & CE  Complete stereo set Euro 780,00          Extra CE Complete stereo set Euro  650,00

Custom at NO Extra cost we can make Just Transformer for Your Cartridge ! specify dc resistance, output mV etc... e-mail us

 su ordinazione!        on reservation !

Tempi di consegna approssimativi presso il ns punto vendita 15- 30 giorni

On reservation, approximate delivery Time at our shop 15 - 30 days
